Main Feature | ||
Type | Gigabit Desktop Switch | |
Port | 24x Gigabit | |
Network Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab | |
Data Transmission Rate | Switching Capacity: 48Gbps RAM Buffer: 512KB Forwarding Rate: 35.71Mpps (64-byte packet size) Jumbo Frames: 9KB Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex) | |
MAC Address Table | 8K entries | |
Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing | |
Hardware Features | ||
LED | Yes | |

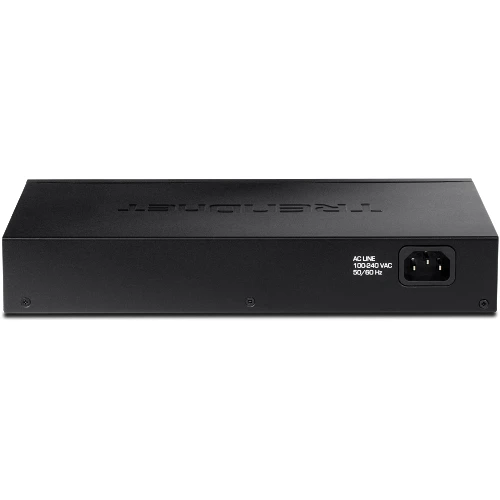

Power Supply | Internal power supply: 100 – 240V AC, 50/60 Hz, 1A Max. Consumption: 14.24W | |
Dimensions (L x W x H) | 267 x 162 x 42mm (10.51 x 6.38 x 1.65 in.) | |
Weight | 1.3kg (2.93 lbs.) | |
Manufacture Warranty | ||
Warranty | 01 Year |

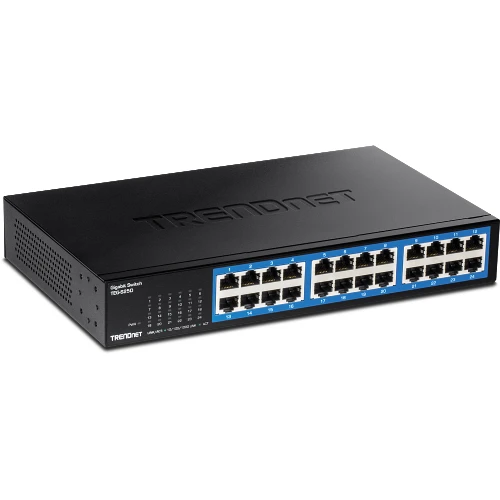

The TRENDnet TEG-S25D 24-Port Gigabit Desktop Switch is a reliable device that provides high bandwidth performance and expands your network connectivity. They come with 24 Gigabit ports that can automatically detect the optimal speed and duplex mode for your connected devices. Those ports provide up to 48Gbps of switching capacity and connect up to 24 devices. The TRENDnet TEG-S25D Switch has a sturdy metal case that can withstand harsh environments and a fanless design that can operate silently. The TRENDnet switch is plug-and-play; you don't need to configure any settings or install any software. Just connect your devices with Ethernet cables and enjoy a fast and stable network connection. The TRENDnet TEG-S25D Gigabit Desktop Switch also has some advanced features, such as 512KB of RAM buffer, 8K entries of MAC address table, and 35.71Mpps of forwarding rate. The TRENDnet TEG-S25D 25-Port Gigabit Desktop Switch is an ideal solution for home and office users who need to connect multiple devices and share network resources.
